Installing a Corner Post for Mesh Pool Fencing: A Step-by-Step Guide
Tools and Materials Needed
- All Safe Corner Post (click to purchase)
- Measuring Tape
- Chalk Line
- Drill and Drill Bits
- Sleeves and Screws
- Level
- Pencil or Marker
Step 1: Preparing for Installation
Before you begin, ensure your deck is clear and clean. Gather all necessary tools and materials, including the All Safe Corner Post, and measure your work area carefully.
Step 2: Marking the Layout

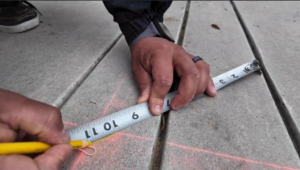

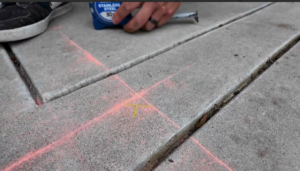

- Draw Guide Lines: For a 36-inch panel, draw a 1 ¼-inch line at a 45-degree angle on the deck. Then, add a perpendicular reference line to form a ‘T’ shape.
- Position the Post: Mark an additional line ¼ inch from the original 45-degree line. This accounts for the inset of the Corner Post’s peg.
Step 3: Measuring for Accurate Placement

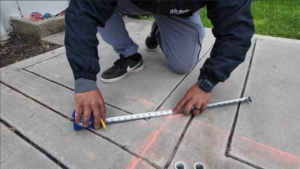

- Measure the Distance: Starting at the last fence pole mark before the corner, place your tape measure at the intersection of the chalk line and 45-degree line.

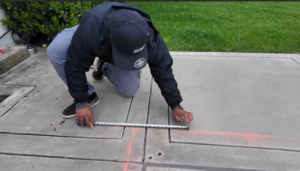

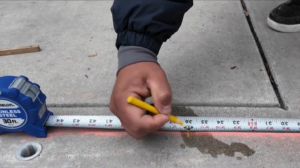

- Pivot and Mark: Pivot the tape measure along the 45-degree line and mark the deck at 36 inches. Repeat this process in reverse to ensure accuracy. Remember, measure twice, drill once!
Step 4: Drilling and Setting the Post

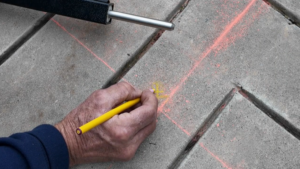

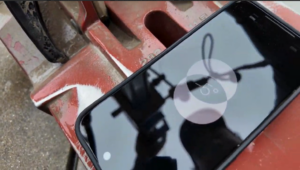

- Drill at an Angle: Set your drill at a 45-degree angle with a 5-degree lean. Drill at the ¼-inch mark (not the original line) to accommodate the Corner Post peg.
- Insert the Sleeve: Once drilled, insert the sleeve into the deck. Then, place the Corner Post into the sleeve.
Step 5: Installing the Fence

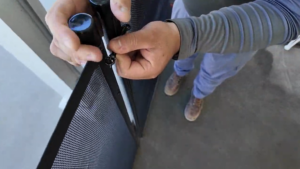

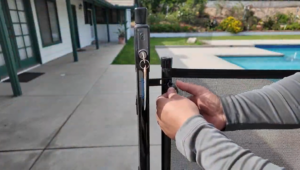

- Connect the Fence: Attach the fence to the Gate Truss, Termination Points, and Section Latches. Ensure the fence is properly tensioned.

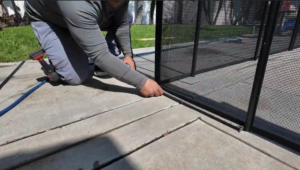

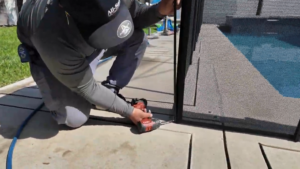

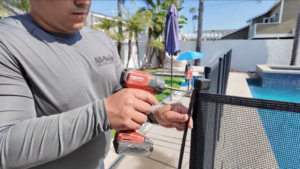

- Align and Secure: Measure from the bottom of the closest pole to the Corner Post and transfer the measurement to the top. Attach the molding starting at the bottom, stretching it slightly for a professional finish, and then secure it fully.
Step 6: Final Adjustments and Finishing Touches
- Maintain Proper Distance: Ensure the Corner Post is at least 12 inches from any other pole to avoid difficult removals due to opposing angles.
- Inside Turn Corner Post: When installing near a turn, use the Inside Turn Corner Post for better tension and stability. Remember to adjust measurements for the molding taking up ¼ inch off each side.
Conclusion
The Corner Post from All Safe elevates the quality and durability of your mesh pool fencing installations.
